    Location:  Home -> Products  ->  Automatic welding line  ->  Fully automatic wire welding - manual loading and unloading of parts
    []   [BACK]

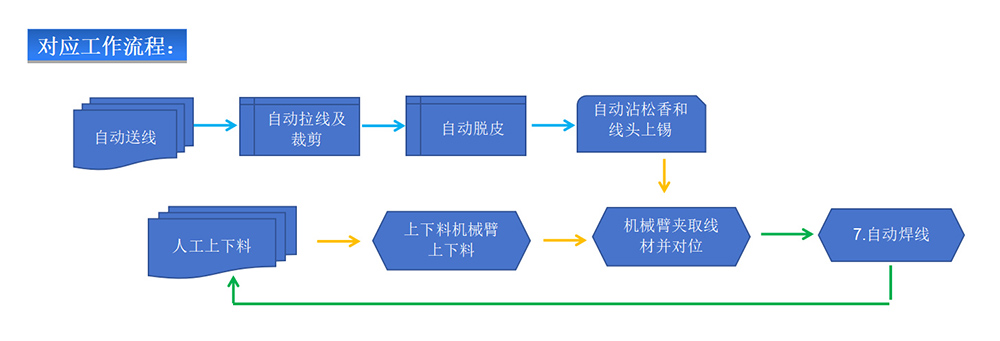

    Fully automatic wire welding - manual loading and unloading of parts

    NO Axle Name Axle Stroke Speed Range Loading Precision NO Axle Name Axle Stroke Speed Range Loading Precision
    1 Furnace Soldering Axle 1-2 9999 mm 0-100mm/sec ±0.1MM 12 Soldering-X Axis 410 mm 0-800MM/sec ±0.05MM
    2 Rosin Circulation Axle 1-2 9999 ml 0-100ml/sec ±5ml 13 Soldering-Y1 Axis 530 mm 0-800MM/sec ±0.05MM
    3 Pull Wire Axle 1000 mm 0-900mm/sec ±0.05MM 14 Soldering-Y2 Axis 530 mm 0-800MM/sec ±0.05MM
    4 Pull Wire Translation Axle 100 mm 0-800mm/sec ±0.05MM 15 Soldering-Z Axis 100 mm 0-800MM/sec ±0.05MM
    5 Cutting Wire Axle 100 mm 0-800mm/sec ±0.05MM 16 Soldering-Supply 1-6 9999 mm 0-100mm/sec ±0.1MM
    6 Pre-Peeling Axle 50 mm 0-800mm/sec ±0.05MM 17
    7 Pre-Tinning Axle 90 degrees 0-90degrees/sec ±0.1degree 18
    8 Post-Peeling Axle 50 mm 0-800mm/sec ±0.05MM 19
    9 Post-Tinning Axle 90 degrees 0-90degrees/sec ±0.1degree 20
    10 Twisting Wire Axle 50 mm 0-800mm/sec ±0.05MM 21
    11 Pick-Up and Delivery Wire Axle 580 mm 0-800mm/sec ±0.05MM 22
    Operating Conditions Power Supply AC220 50~60HZ Working Temperature -10~40 Celsius
    Air Pressure 3-6kgf/cm2 Humidity 20%-95%
