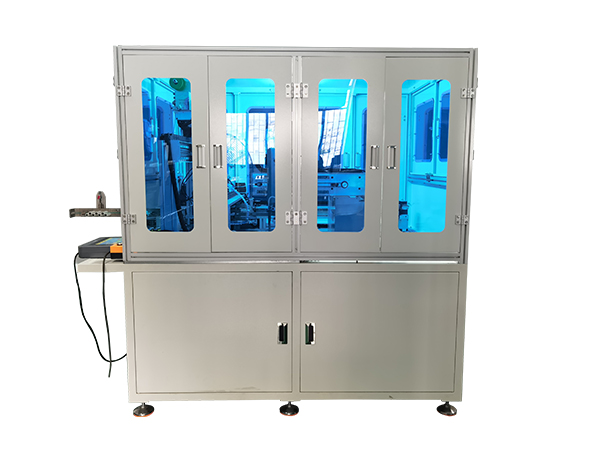

The fully automatic wire bonding machine is a core device used for wire bonding inside semiconductor devices such as LED packaging and transistors. It adopts an opto-mechatronic integrated design and belongs to precision automated industrial equipment. Its development has undergone technological upgrades from manual, semi-automatic to high-speed fully automatic, mainly serving the field of electronic component manufacturing.

I. Technical Advantages

Efficiency improvement

24-hour continuous operation: Automated equipment can replace manual labor to achieve uninterrupted production. For instance, after a certain auto parts manufacturer introduced an automatic welding line, its daily production capacity increased from 5,000 pieces to 20,000 pieces.

Multi-station parallel operation: Through rotary table or assembly line design, material feeding, welding and inspection can be carried out simultaneously, shortening the production cycle of a single piece. For instance, the cycle time of the FPC welding line in a certain electronics factory has been compressed from 12 seconds per piece to 4 seconds per piece.

Stable quality

Eliminating human error: Automated control reduces fluctuations in manual operation, significantly enhancing welding consistency. For instance, after a certain aviation component manufacturer adopted automatic welding, the weld qualification rate increased from 92% to 99.5%.

Defect rate reduction: The online detection system can intercept defects such as pores and cracks in real time, keeping the defective product rate within 0.1%.

Cost optimization

Reduce labor costs: One automatic welding line can replace 5 to 10 welders, saving over one million yuan in labor costs annually.

Reduce material waste: Precisely control the amount of welding materials used (for example, laser welding does not require welding wire), reduce spatter and excess height, and increase material utilization by 15% to 20%.

Security guarantee

Isolate hazardous areas: By using protective covers, gratings and other devices, the welding arc light and smoke dust are isolated from the operators to reduce the risk of occupational diseases.

Emergency stop function: The equipment is equipped with an emergency stop button and safety sensors. In case of any abnormality, it will immediately stop running to prevent the accident from expanding.

Ii. Development Trends

Intelligent upgrade

AI visual guidance: By integrating deep learning algorithms, it enables automatic weld seam positioning and defect classification, adapting to the welding of complex workpieces. For instance, the AI weld seam tracking system developed by a certain enterprise has a positioning accuracy of ±0.05mm.

Digital twin technology: Optimizing welding paths and parameters through virtual simulation to reduce trial-and-error costs. For example, the Siemens NX MCD software can simulate the welding process and predict deformation and stress distribution in advance.

Flexible development

Modular design: It adopts quick-change fixtures and programmable controllers, supporting rapid model changes to adapt to multi-variety production. For instance, a certain wire welding equipment can switch from automotive parts to household appliances within one hour by changing the fixtures.

Application of collaborative robots: Introduce lightweight collaborative robots (such as the UR series) to achieve human-machine collaborative welding and enhance flexibility.

Green manufacturing

Energy-saving technology: Utilizing inverter power supplies and energy recovery devices to reduce energy consumption (for instance, the energy consumption of a certain laser welding equipment was reduced by 30%).

Environmentally friendly materials: Promote lead-free solder and low-smoke welding wire to reduce the emission of harmful substances.
